移动式岩金矿选矿设备(破碎选金车)

名称
Productions

规格
Specifications

数量
Quantity

功率
Power/Kw

备注
Remark

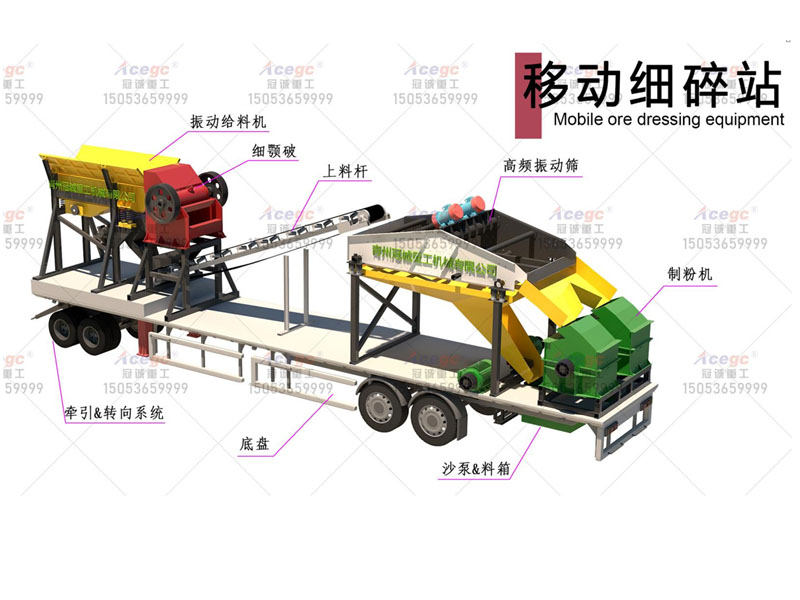

底盘
chassis

四轴16条9.00-2#轮胎；
自制重型汽车底盘，采用56#\25#工字钢梁焊接
4 axle 16 tire 9.00-2

1套
1set

-

含牵引&转向系统
Including traction & steering system

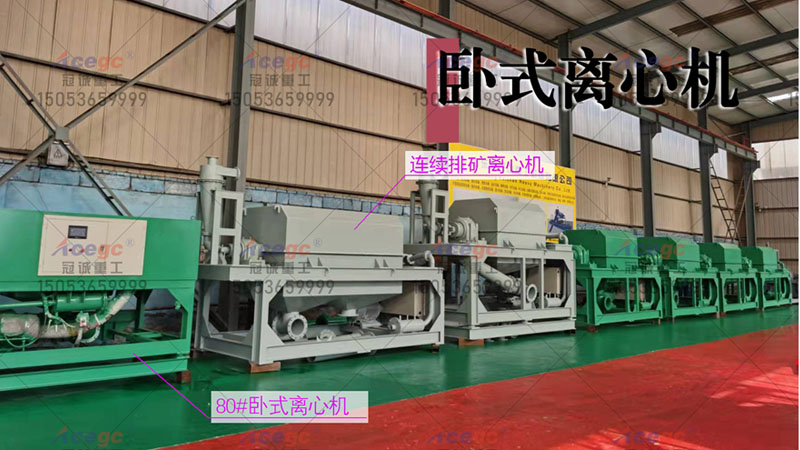

离心机
Centrifuge

规格：1200#卧式全自动排矿
Specifications:1200# horizontal fully automatic ore discharge
PLC电脑全自动控制
PLC computer automatic control
空气压缩机：3KW*1台
Air compressor: 3kw * 1 set
电机：18.5KW*1台
Motor: 18.5kw * 1 set

2台
2sets

43

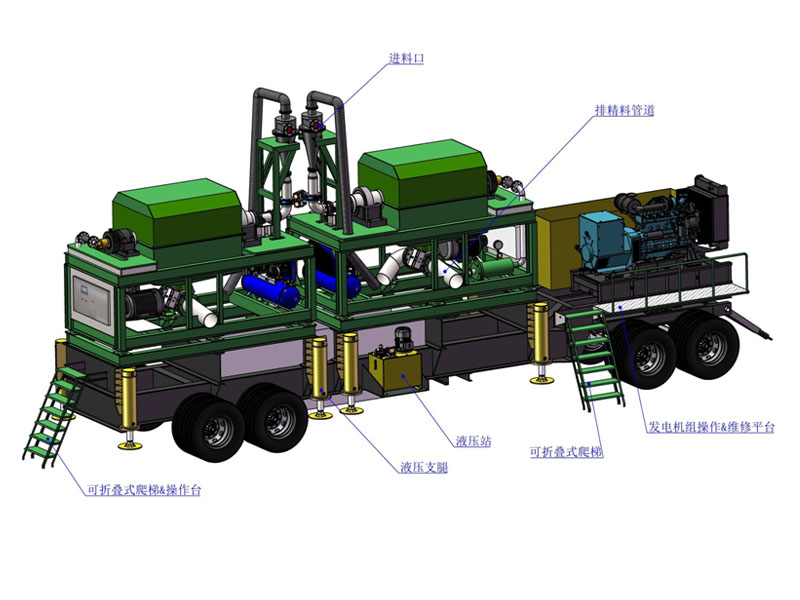

液压系统
Hydraulic system

液压站1台1 hydraulic station
液压支腿8条  8 hydraulic Outriggers

1套
1set

5.5

离心水泵
Centrifugal pump

流量：200；扬程20米；6进5出
输送距离200-300米
Flow: 200m3/h;
conveying distance: 200-300m;
lift: 20m
Inlet: 6 inches; outlet: 5 inches

1台
1set

18.5

含进水管道12米(橡胶钢丝管)，出水管道30米(消防水带)，超出部分由配件选择。
The water inlet pipe is 12m (rubber steel pipe), and the outlet pipe is 30m (fire hose). The excess part is selected by accessories.

7寸沙泵
7 inch sand pump

进料7寸；出料6寸Feed 7 inches; discharge 6 inches
输送距离40-60米，扬程10米The conveying distance is 40-60m and the lift is 10m
流量Flow：360m3 /h

1套
1set

45

配带出料管道(橡胶钢丝管)30米
Equipped with discharge pipe (rubber steel pipe) 30m

料箱

板厚12mm；容积约5.7m3

1套
1set

-

配电箱
Power Distribution Box

开关品牌：德力西
Switch brand: Delixi

1套
1set

-

含至设备电机线，不含电缆线
Including motor line to equipment, excluding cable line

总功率
Total power

106.5KW（不含液压站功率Excluding hydraulic station）
